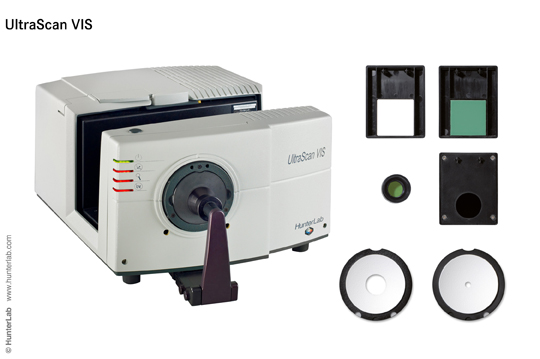

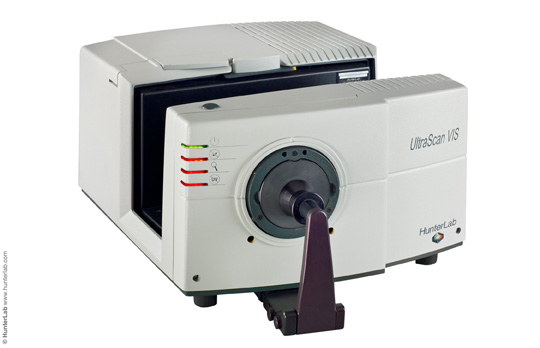

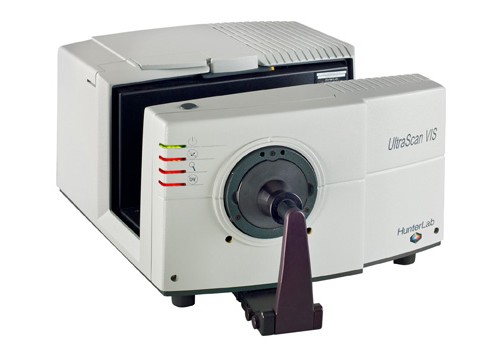

UltraScan VIS

The visible range color measurement spectrophotometer scans the entire wavelength range
recommended by the CIE.

UltraScan VIS Details:

  • Wavelength range 360 nm – 780 nm, with 10 nm data interval.
  • Measures reflectance, transmittance and haze.
  • Sample reflectance measurement areas: 25 mm (1.00 in) and 9.5 mm (0.37 in).
  • Automated control of Specular Component Included/Excluded, Large and Small Area View lens and UV control filter using optional fluorescent standard.
  • Uses 15.2 cm (6.0 in) sphere.
